Alignment Tool Plates – Steering Toe
$3.99
Get your off-road vehicle’s steering dialed in with our precision DXF alignment plate files! Designed to ensure accurate toe alignment for rugged performance. Compatible with multiple bolt patterns and can be used on many different applications.

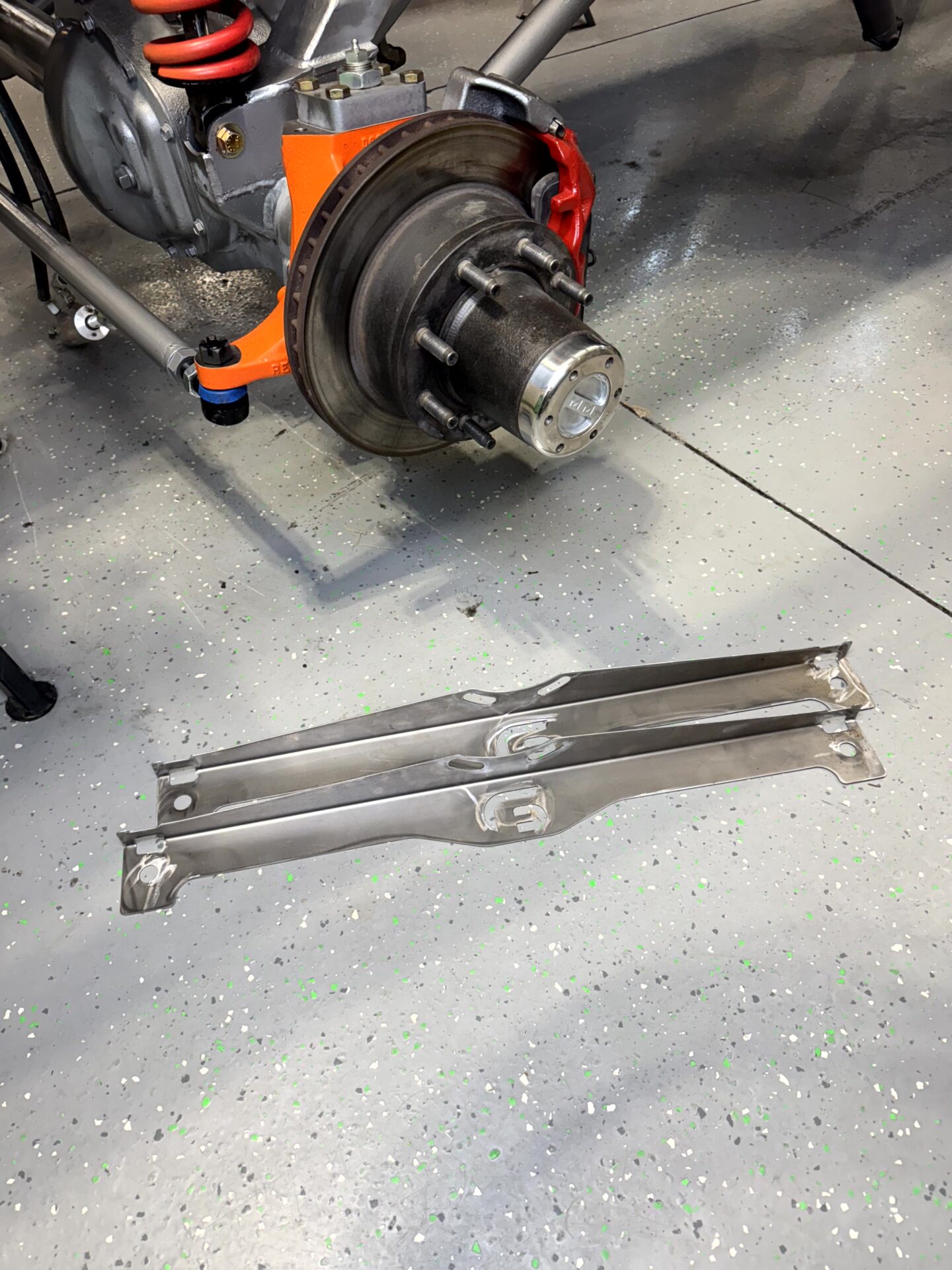

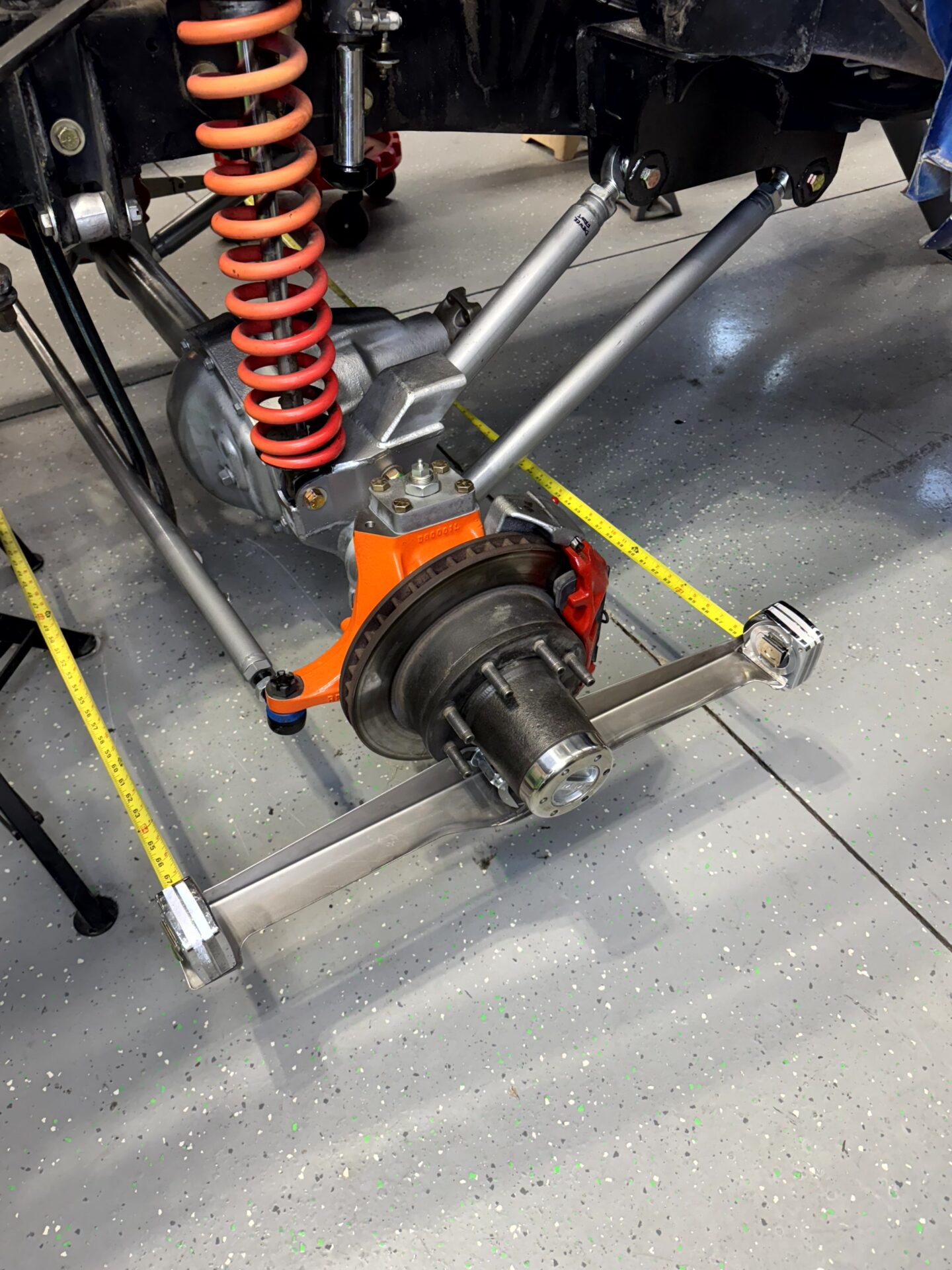

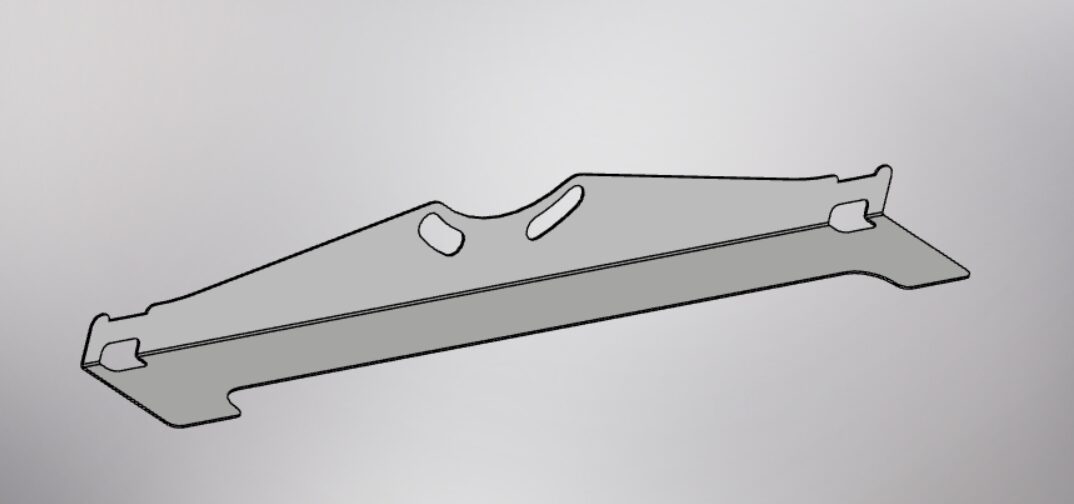

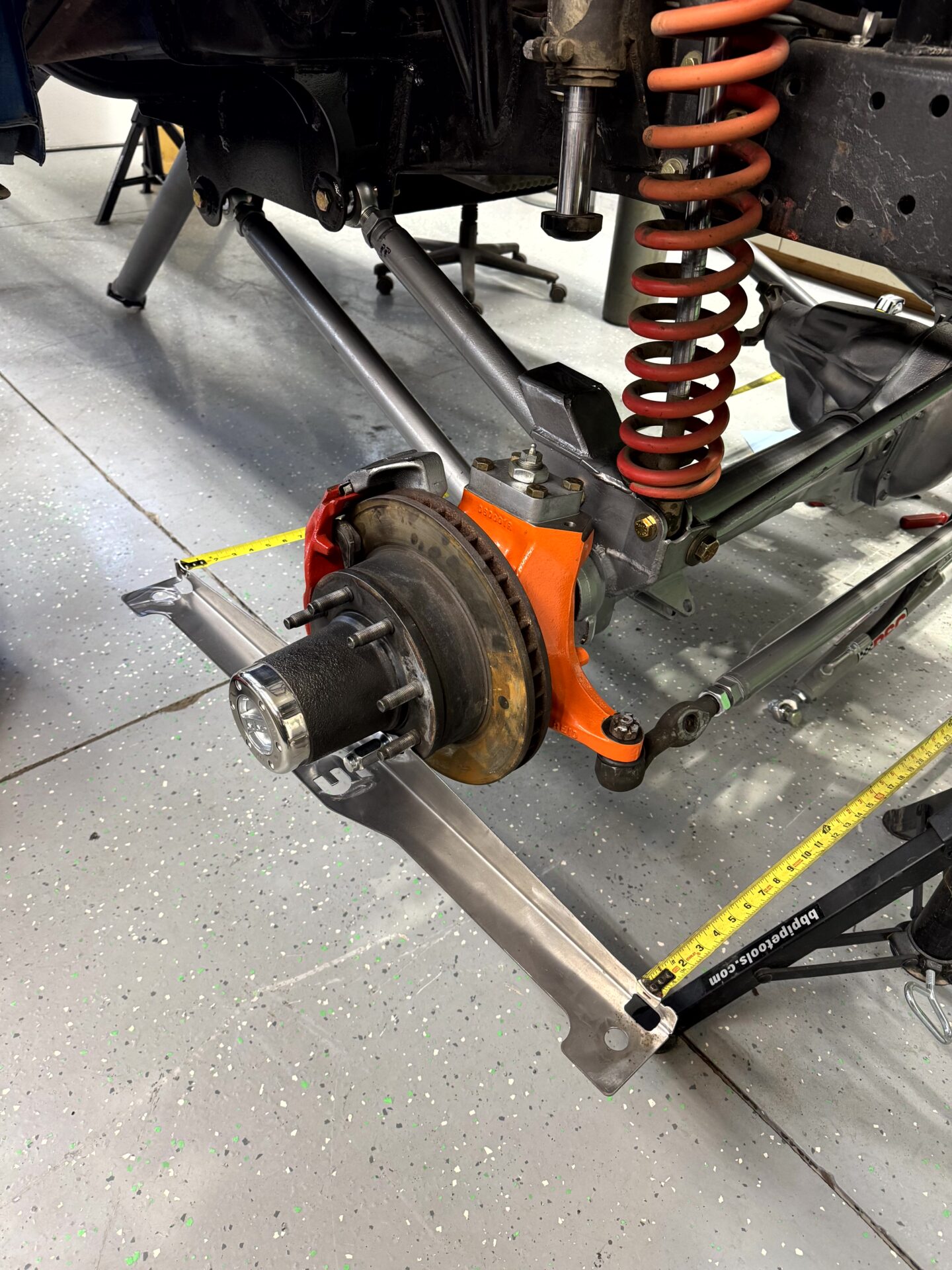

Upgrade your off-road experience with our precision-engineered DXF file for cutting alignment plates, designed to perfectly set the steering toe on your on or off-road vehicles. Crafted for durability, we recommend these plates be cut from 16-gauge to 1/8-inch thick material, ensuring strength and reliability on the toughest terrains. Compatible with a wide range of bolt patterns—including 8 x 6.5″, 8 x 170mm, 5 x 5.5″, 6 x 5.5″, 4 x 137mm, and 4 x 156mm—this versatile DXF file guarantees a seamless fit for your off-road beast. Take control of your alignment with ease and confidence, and keep your vehicle tracking straight through every adventure!
No need for extensions when you burn these out- we’ve included DXF files in widths of 24″, 32″, 40″, and 48″ widths.
Note- Completion of these parts will require use of an appropriate sheet metal or press brake.
| Manufacturing Method | 2D cutting, Forming |
|---|---|
| Product Type | Digital Product License |
| Skill Level | Level 3: Some Tools, Welding, Forming |
