Stanley Organizer Rack DXF File
$7.99

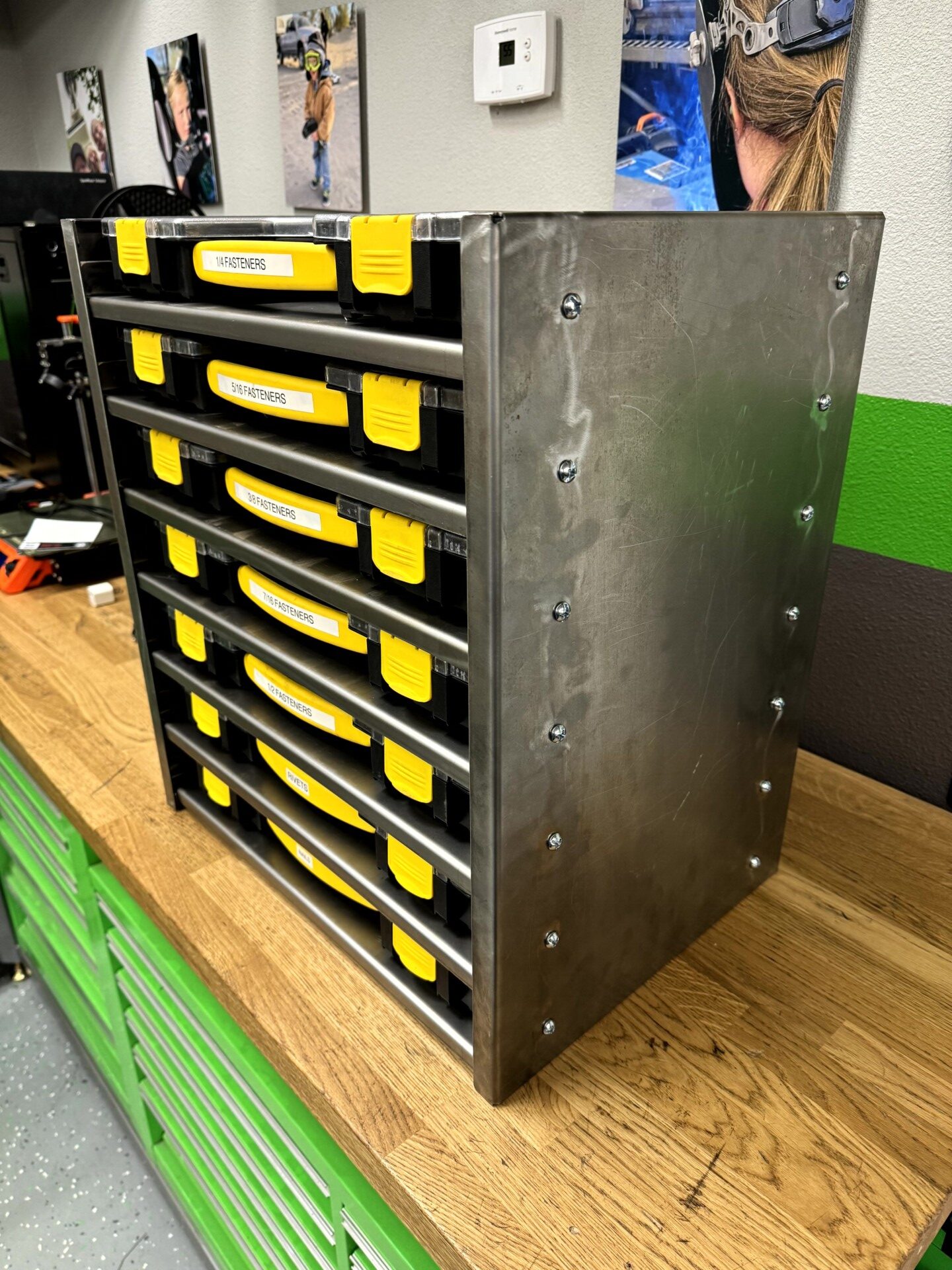

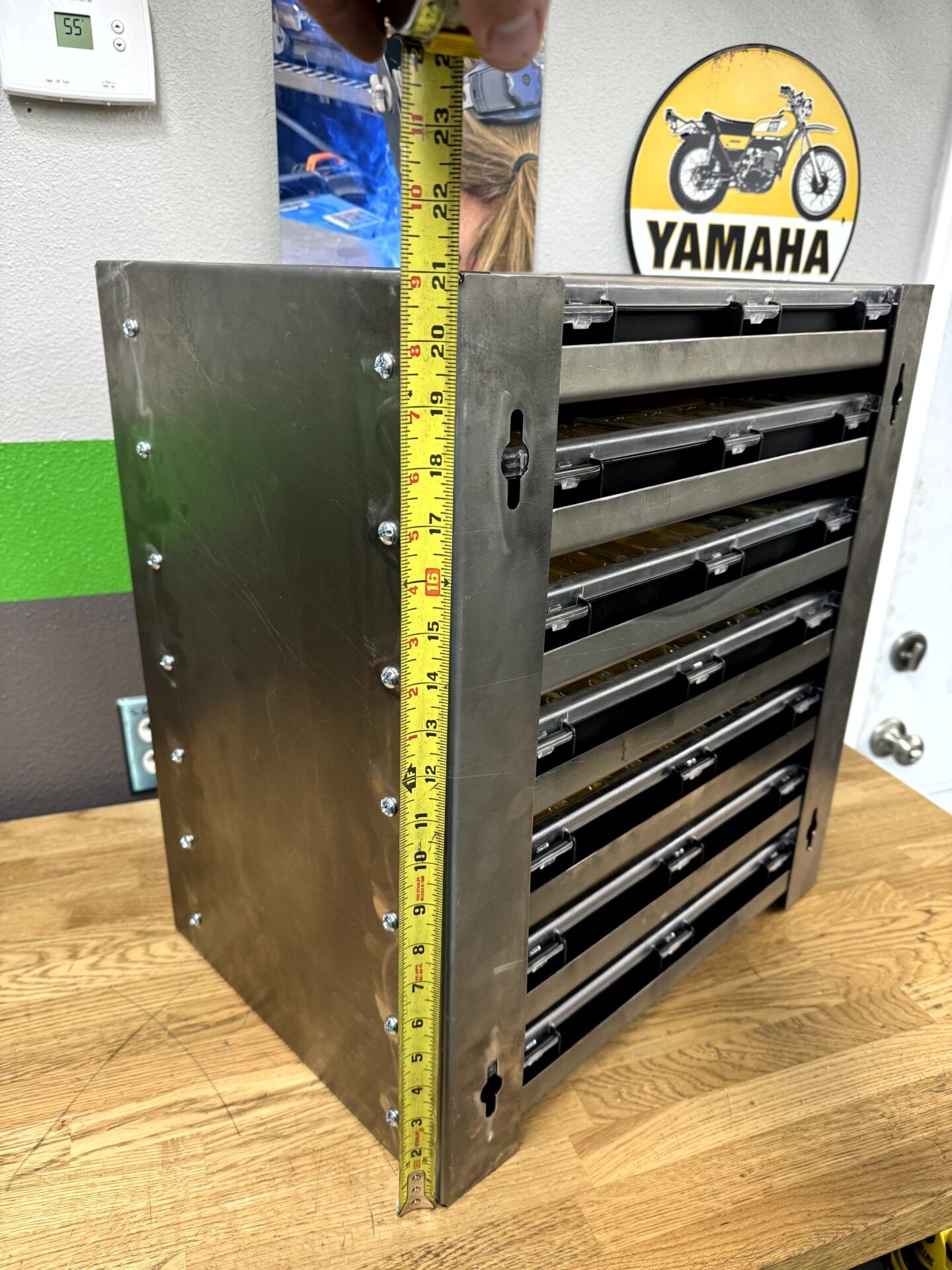

Sheet metal rack design, materials list, and assembly instructions for storing your Stanley organizers. Fits Harbor freight organizers too!

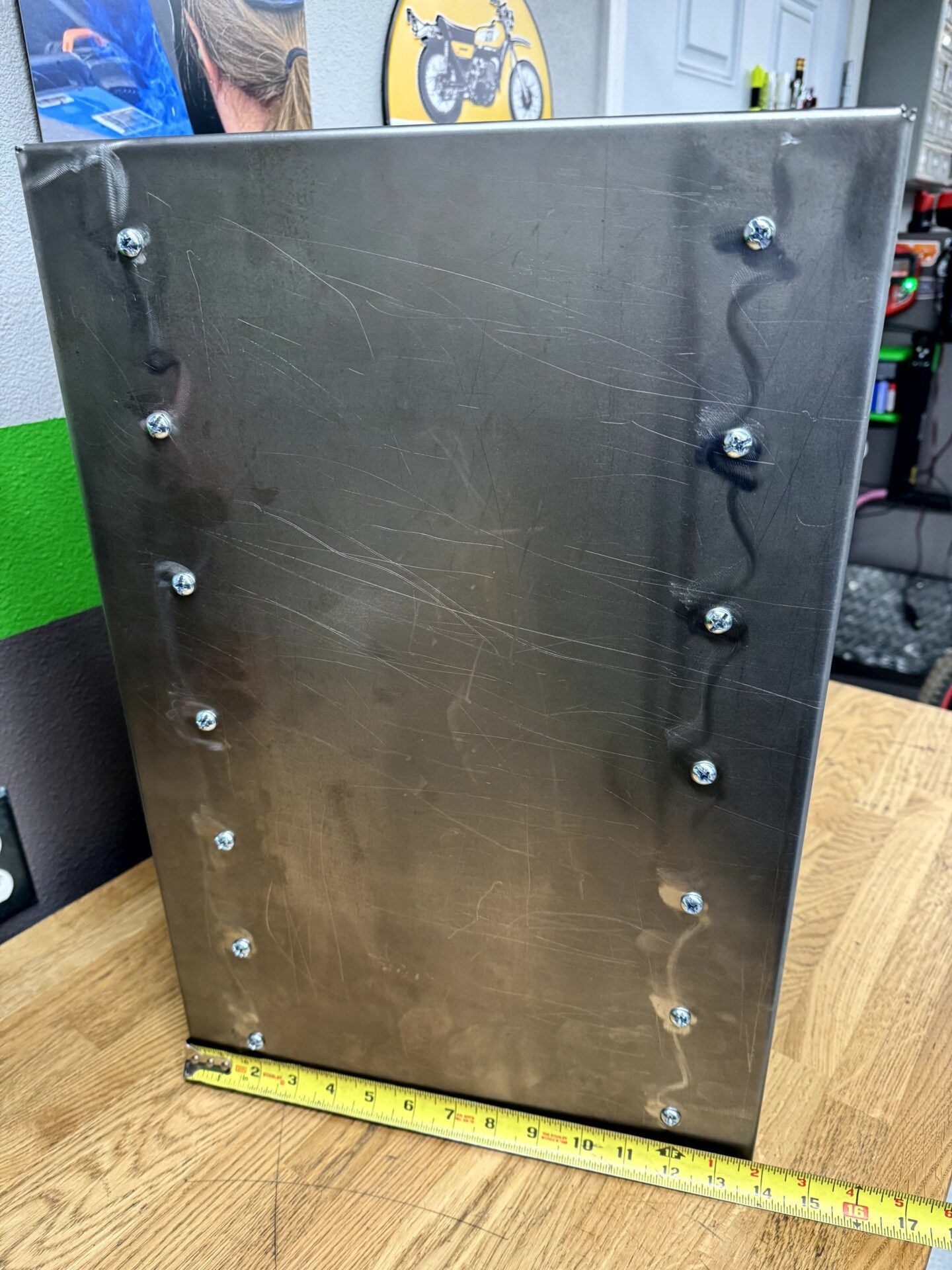

-Fully bolt together construction, no welding required
-Cut files include perforated flat patterns for hand bending, as well non-perforated files

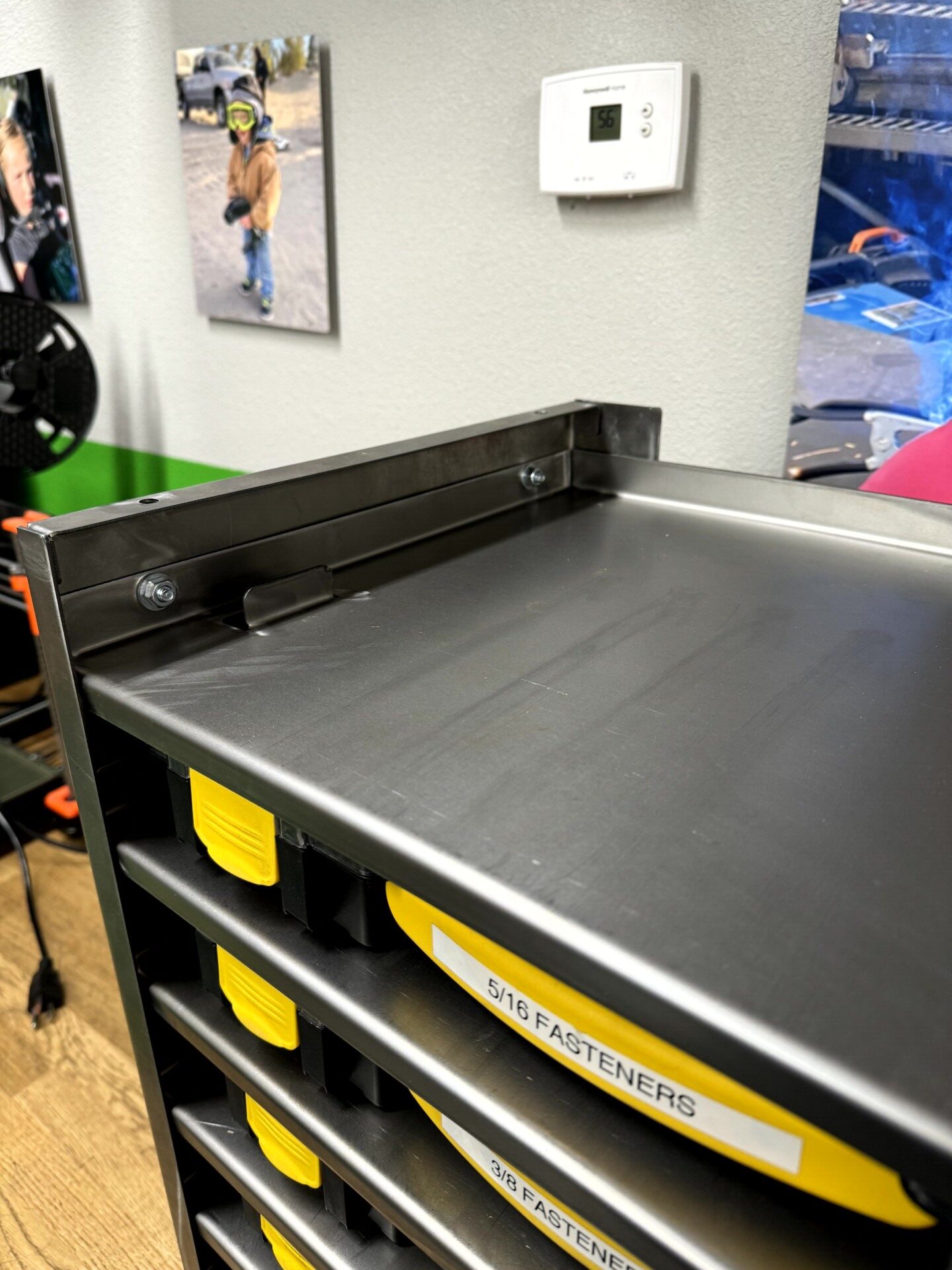

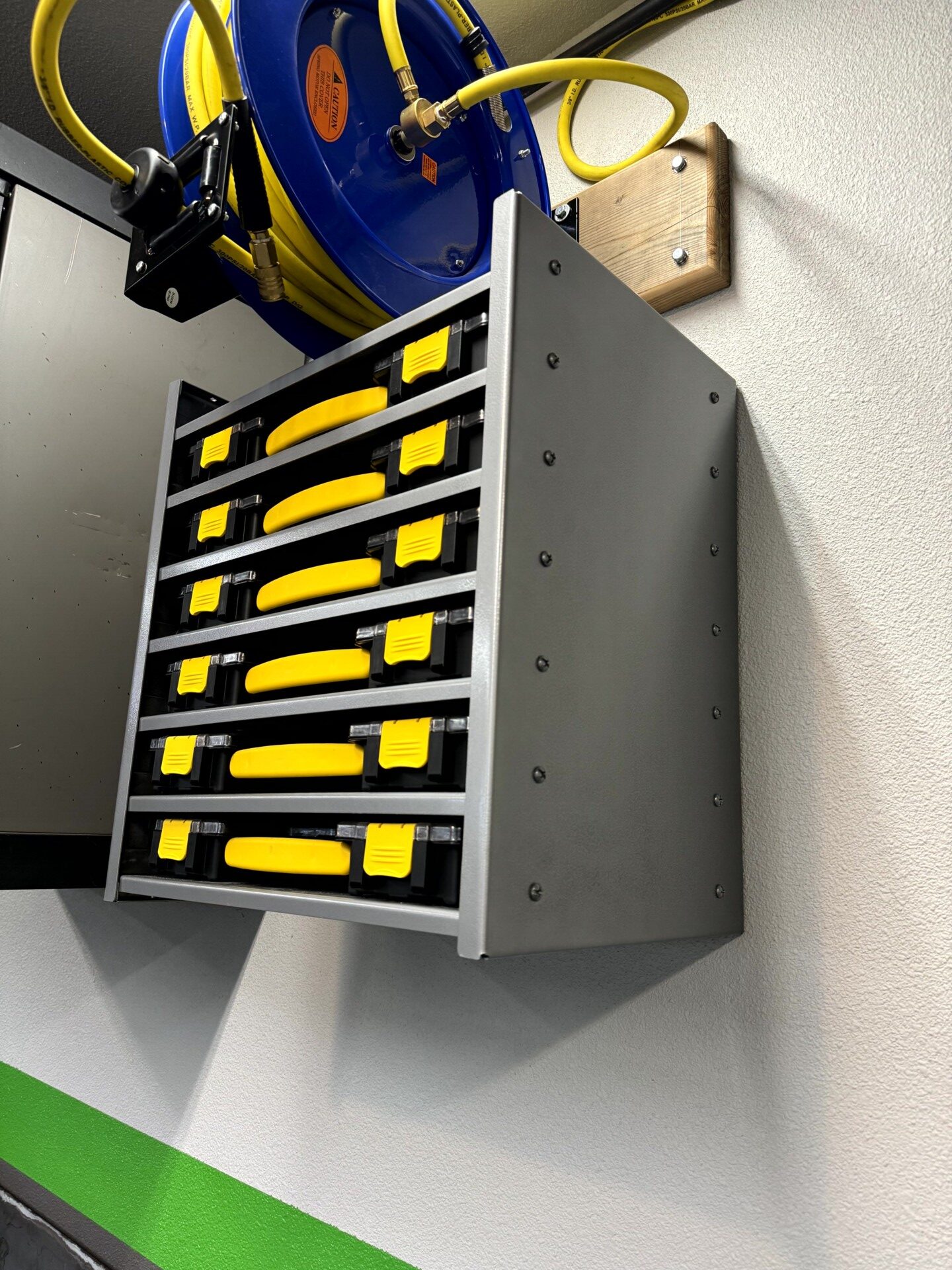

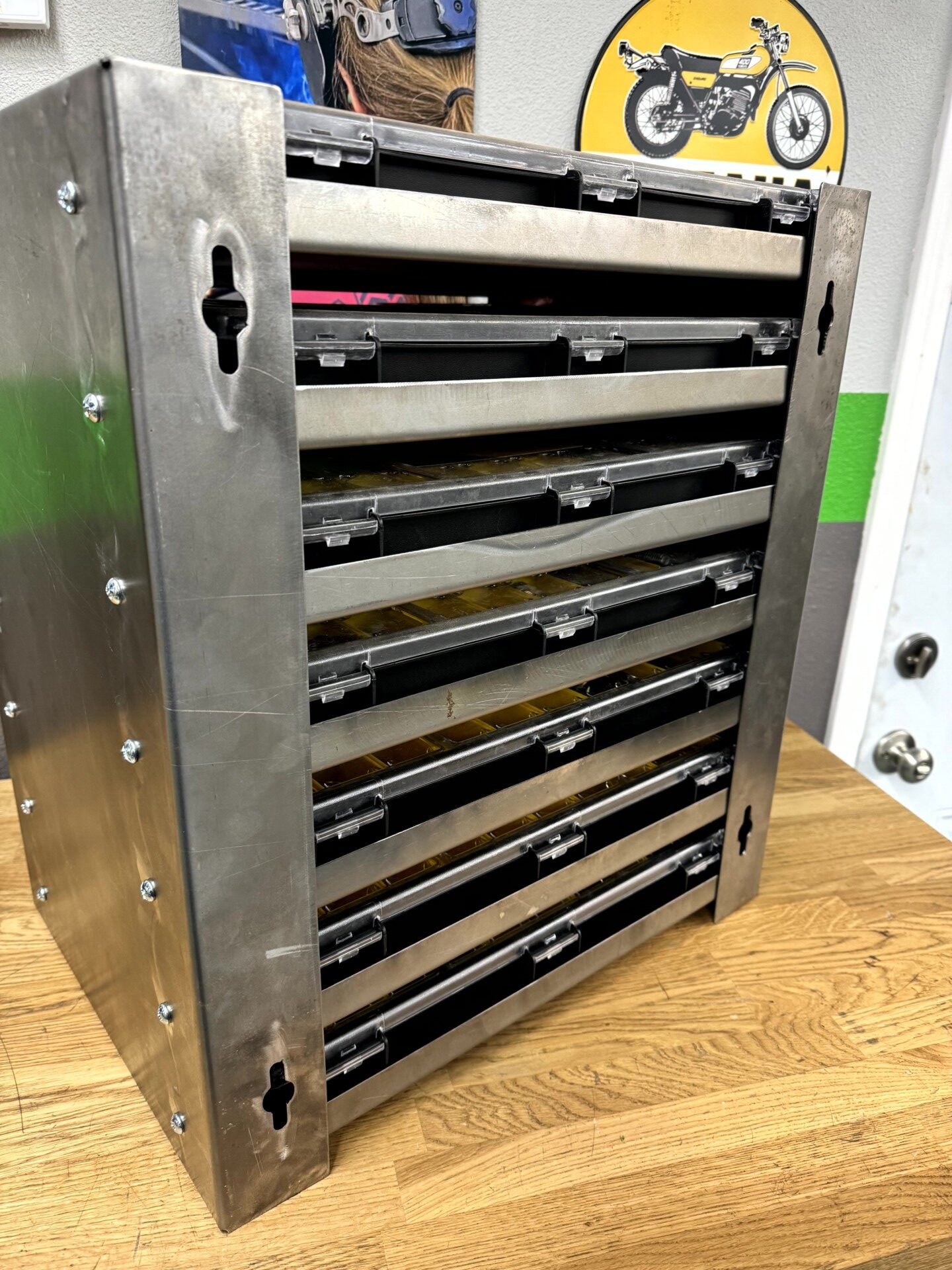

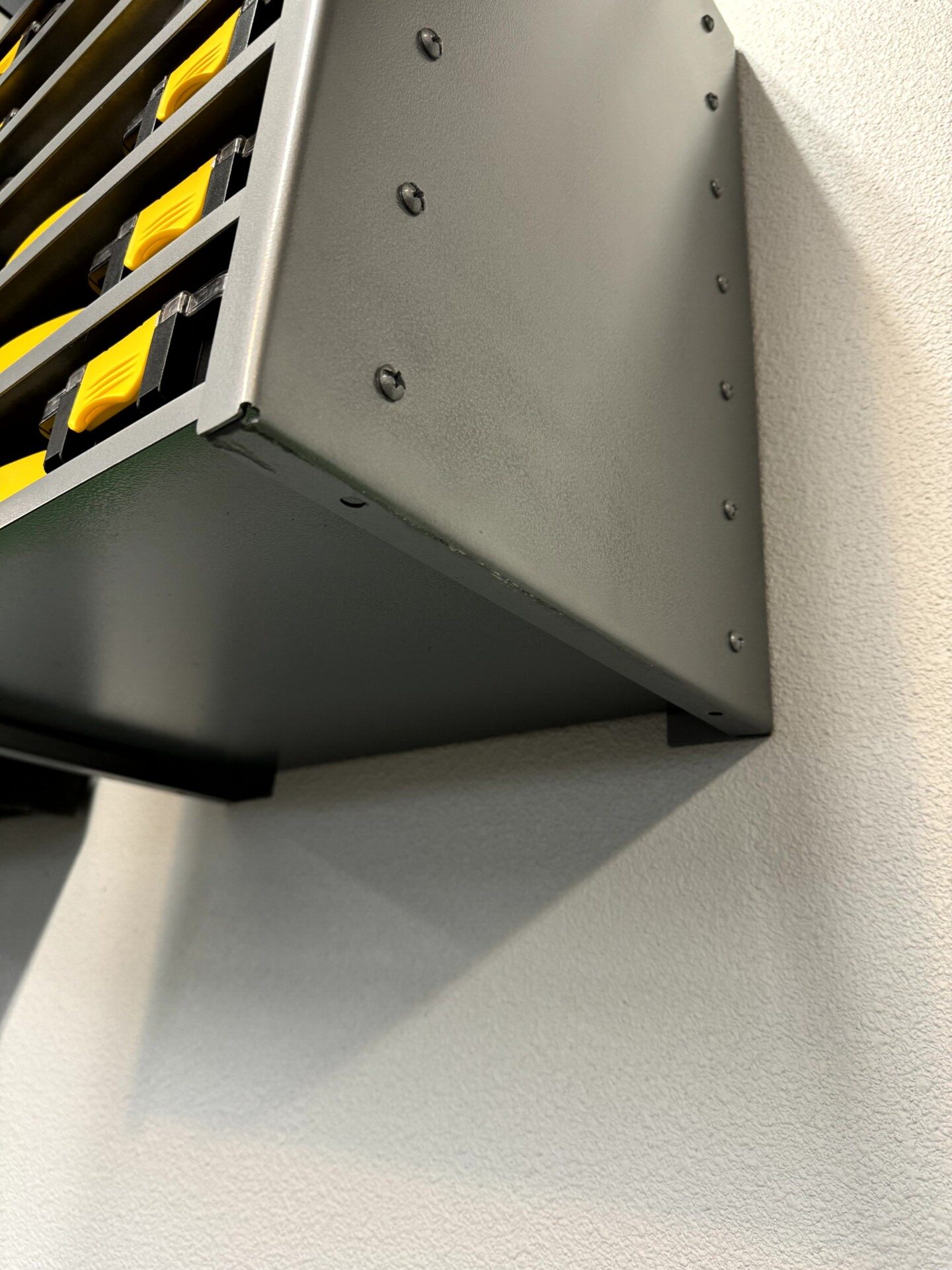

-Designed to be stacked and bolted together one atop the next, or hung from wall on 16″ centers

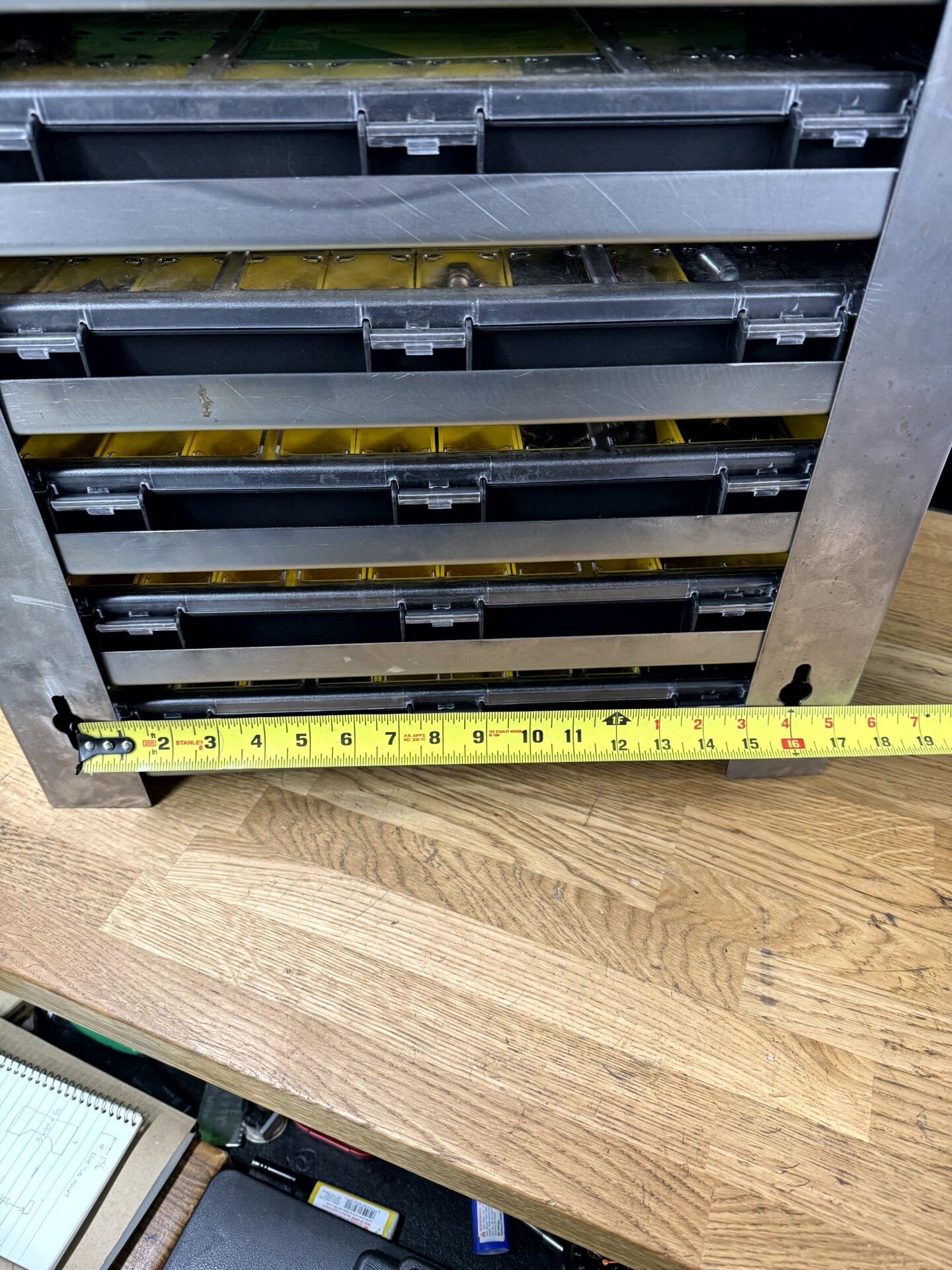

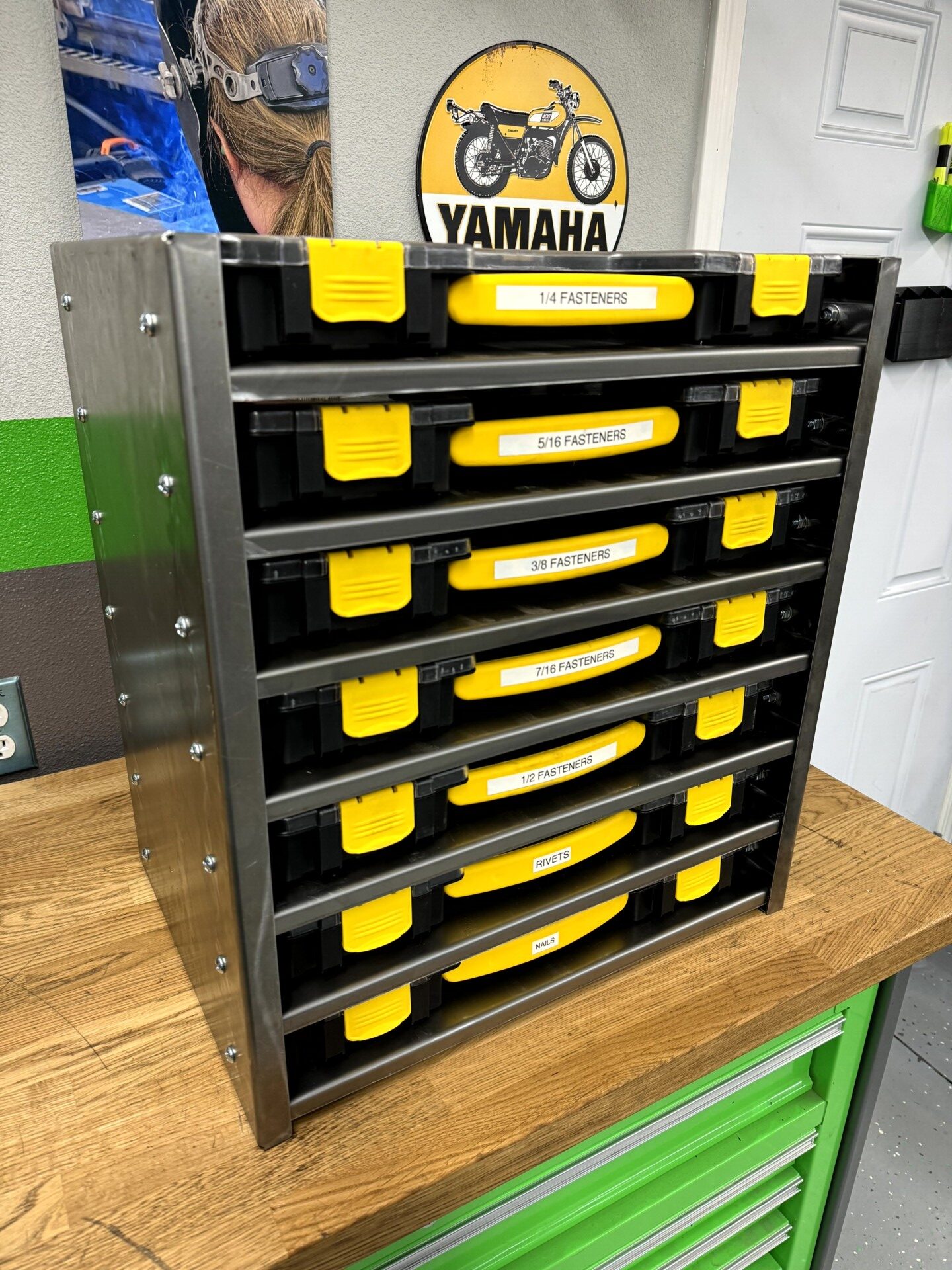

-Fits 7 standard or 4 Deep Stanley Organizers (014725R & 014710R)
-Can be assembled to store mix of standard and deep organizers
-Designed to be cut from 14ga or 16ga steel, but can be cut from any thickness you like.
-WHAT’S INCLUDED: Fully nested .dxf templates for 1x, 2x, and 3x quantities. Also includes templates with perforations for bending by hand!
-WHAT’S NOT INCLUDED: Physical parts of any kind. You will physically receive nothing; this is only a download of cad files.
-Please refrain from sharing files. Build as many as you like, but please don’t share or sell my cut files.
| Product Type | Digital Product License |
|---|---|
| Skill Level | Level 2: Simple Hand Tools |
| Manufacturing Method | 2D cutting |
